SODIUM NITRATE — ION CHROMATOGRAPHY (IC) VALIDATION PROTOCOL
Objective
To validate an Ion Chromatography (IC) method for the quantitation of nitrate (as sodium nitrate) in pharmaceutical/biopharmaceutical aqueous formulations using suppressed conductivity detection in accordance with ICH Q2 (R1/R2) guidelines.
This protocol applies to:
- Finished biopharma formulations
- In-process samples
- Stability samples
- Aqueous small-molecule products containing nitrate
This method quantifies nitrate ion only; other anions (chloride, sulfate, nitrite, acetate) are treated as potential interferences.

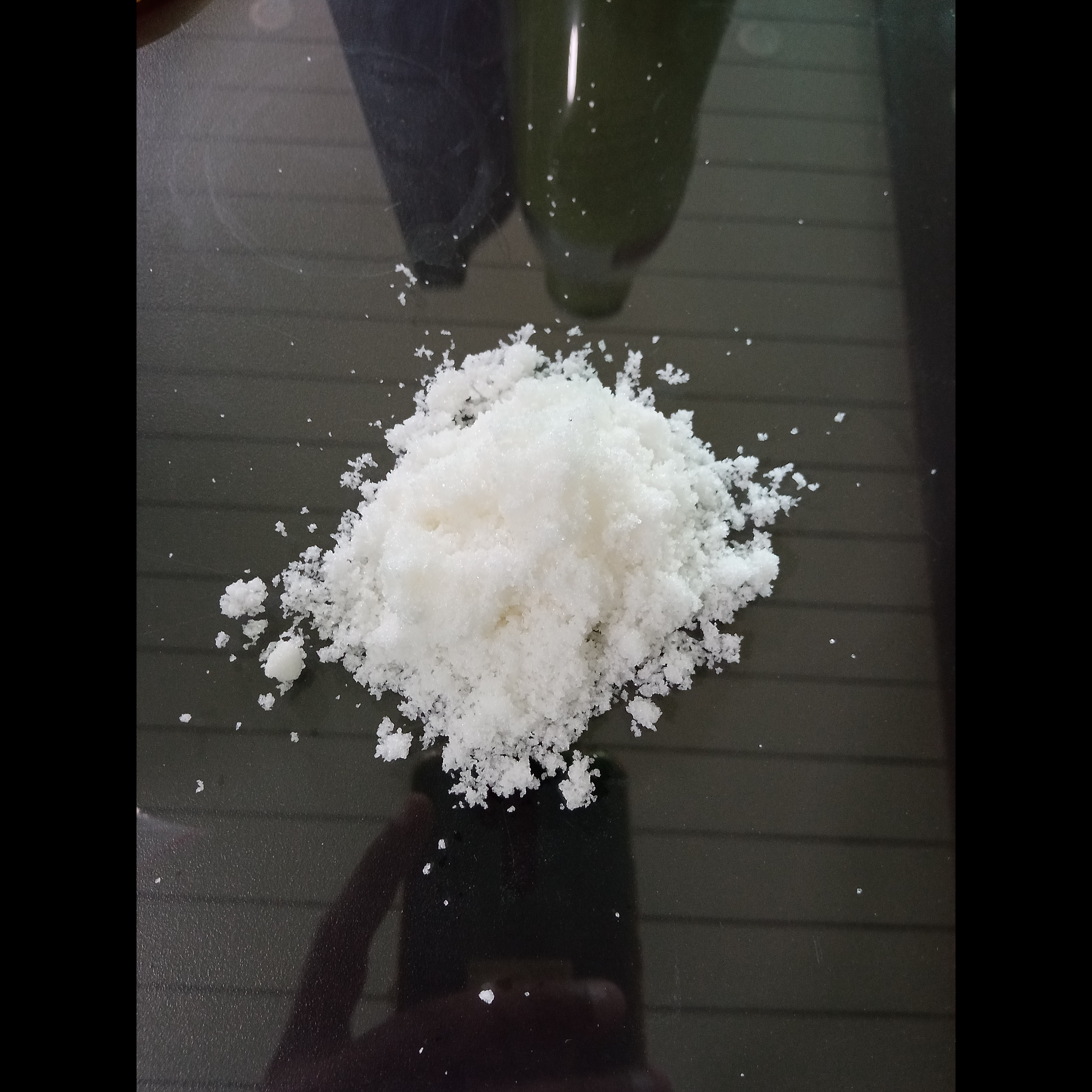

Sodium nitrate (NIST-traceable or analytical grade)
Ultrapure water, ≥18.2 MΩ·cm resistivity
Matrix blank (placebo formulation), if available
- 0.22 µm PVDF or nylon filters
- Low-ion polypropylene vials
- MWCO filters (3–10 kDa) for protein formulations (if required)
Parameter Condition Column IonPac AS11-HC + AG11-HC Eluent 10 mM KOH (isocratic) Flow rate 1.0 mL/min Column Temp 25–30 °C Injection Volume 10 µL Detector Suppressed conductivity Run time 10–15 minutes Typical Nitrate RT 4–7 minutes (varies by instrument)
Range: 0.1 – 100 ppm nitrate (expand to 200 ppm if needed).
Minimum 7 calibration points.
Acceptance:
- r² ≥ 0.999
- Back-calculated concentrations within ±10% (±15% at LOQ)
Perform spike-recovery in matrix at: LOQ, Low (~1 ppm), Mid (~10 ppm), High (~50 ppm).
Triplicate at each level.
- Acceptance: 95–105% recovery (LOQ 90–110% acceptable).
Repeatability (Intra-day):
- 6 injections at mid-level (e.g., 10 ppm).
- Acceptance: %RSD ≤ 3%.
Intermediate Precision (Inter-day/analyst):
- 6 injections on 2–3 separate days.
- Acceptance: %RSD ≤ 5%.
LOD = S/N = 3; LOQ = S/N = 10, using low-level standard.
Verification: six replicates at LOQ must meet:
- %RSD ≤ 10–15%
- Recovery 90–110%
Evaluate influence of small deliberate changes:
- Eluent strength ±10%
- Flow ±0.1 mL/min
- Temperature ±5 °C
- Injection volume ±10%
- Acceptance: assay variability ≤ 5%; specificity maintained.
Before each sequence:
- Six injections of mid-level standard (10 ppm).
- Acceptance criteria:
- Area RSD ≤ 3%
- Retention time RSD ≤ 0.1 min
- Tailing factor 0.9–1.5
- Theoretical plates ≥ vendor spec
Install column + guard; equilibrate with eluent.
Suppressor on and stable.
- Detector baseline stable
Inject single anions (5–10 ppm each): chloride, nitrite, nitrate, sulfate, formate, acetate
Inject mixed anion standard
Inject matrix blank
- Evaluate resolution & interference
Prepare standards (0.1–100 ppm).
Inject in triplicate.
Plot area vs concentration; regression analysis.
- Evaluate r², residuals, back-calculated values
Prepare matrix blanks spiked at LOQ, low, mid, high.
Process per sample prep method.
- Calculate %recovery.
Eluent: 9 mM & 11 mM KOH
Flow: 0.9 & 1.1 mL/min
Temp: 20 & 35 °C
- Injection: ±10% volume
Dilute 10–200× in ultrapure water
0.22 µm filtration
Inject
RT: 0, 6, 24, 48 h
4 °C: 0, 24, 48 h
- Method description
- Chromatograms (blank, standard, matrix blank, spiked)
- Calibration curve & regression table
- Specificity table
- LOD/LOQ determination
- Precision & accuracy tables
- Robustness study summary
- Stability data
- System suitability summary
- Final conclusion: Method validated / not validated
Repeatability (intra-assay precision)
Precision obtained by measuring the same sample multiple times under the same conditions (same operator, instrument, day).
Intermediate precision
Precision obtained with deliberate small variations (different days, analysts, instruments in the same lab).
Reproducibility
Precision between different laboratories (external). Usually part of collaborative studies, not routine validation.
Number of replicates (repeatability): n = 6 (minimum) of a single QC/sample level — usually mid-level (e.g., near therapeutic/expected concentration).
Intermediate precision: repeat the repeatability experiment on 2–3 different days and/or with 2 different analysts/instruments. A common design: 3 days × 6 replicates (or 3 days × 3 replicates) depending on resources.
LOQ verification: perform n = 6 replicates at the LOQ to verify precision/accuracy.
Multiple levels: although mid-level is primary, also consider low and high QC levels (e.g., LOQ, ~10× LOQ, and upper range) to show precision across the validated range.
- %RSD = (SD / mean) × 100
- Compute for peak area and for calculated concentration (use concentration for final precision reporting).
- Mean, SD, %RSD reported with units and number of replicates (n).
- Report bias (for accuracy experiments) alongside precision where relevant.
Example table (what to include in report)
Use a formal rule for outliers (e.g., Grubbs’ test at α = 0.05) — document and justify any exclusion.
If an outlier is excluded, rerun the measurement to confirm. Don’t repeatedly delete points to force compliance.
For intermediate precision, consider ANOVA to estimate components of variance (within-day vs between-day) if you need uncertainty budgets.
- LOQ-level precision: accept higher variability (10–15% or more) but require verified accuracy.
- Impurity/trace analytes: %RSD acceptance may be looser; justify with historical data or regulatory precedent.
- Protein/complex matrices: expect slightly higher variability due to matrix effects; if >3% but ≤5% and consistently reproducible, document justification and consider additional cleanup to tighten precision.
Run system suitability immediately before repeatability runs and document pass/fail.
Use same vial type, same filtration procedure, same analyst for repeatability to reduce extraneous variance.
Rinse MWCO devices and document rinses to avoid leachable ion bias.
If intermediate precision fails (>5% RSD), investigate: analyst technique, autosampler stability, suppressor performance, column condition, standard preparation errors.
- Experimental design (n, levels, days, analysts)
- Raw data (areas, RTs), calculations (mean, SD, %RSD), and chromatograms
- Statistical tests used (Grubbs, ANOVA if used)
- System suitability results and acceptance status
- Final statement: method meets/does not meet repeatability & precision criteria (with evidence)
